Adjustable Wave Solder Fixture/Workstation/Flip Fixture

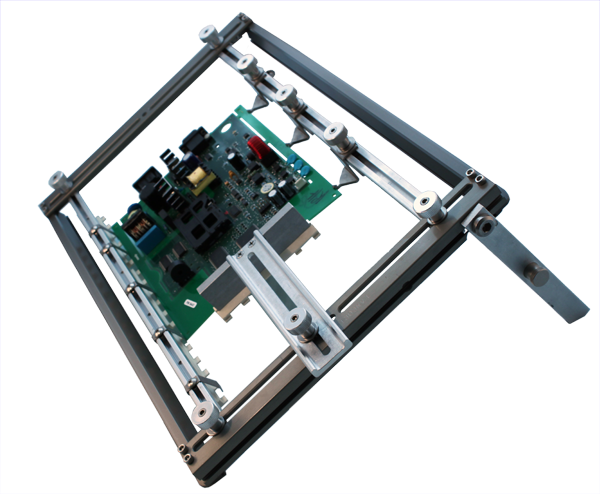

MB Mfg introduces the ultimate in versatility for an Adjustable Wave Solder Fixture/Workstation/Flip Fixture, all in one simple to use cost effective unit. The unit consists of one F-3 frame hard coat anodizes for the ultimate in wear, corrosion resistance, one titanium clip rail with high temperature molded combs for consistent PBC holding the solder pallet. Also shown, one titanium finger rail allows for excellent PCB support in between overhanging components. In addition a Tee support provides adjustable PCB support on a third side reduce or eliminate circuit board warp age. Finally we have folding legs that swing into position with the simple pull of a plunger. This allows a more ergonomic work environment for component placement or PCB rework. A must have for anyone who assembles printed circuit boards.
Adjustable Smart Solder Pallet (Formerly Fancort)

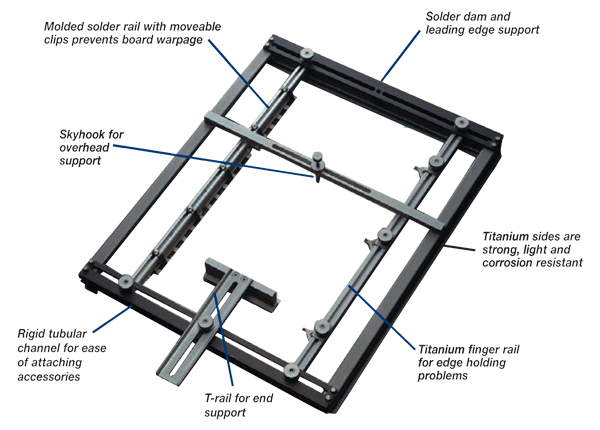

MB delivers a combination of high quality, cost effective adjustable fixtures combined with our state of the art molded solder rails and comprehensive array of highly functional accessories to enhance your machine soldering process. Shown here, our new Smart Solder Pallet (formerly Fancort).
Our Smart Solder Pallet in use, see on the Discovery Channel:
Read more: Adjustable Smart Solder Pallet (Formerly Fancort)
Adjustable Wave Solder Fixture
Over 25 years of solder fixture design experience now available in the form of a top quality, cost effective, adjustable fixture.
|
ESD safe composites
|
Low heat retention
|
Excellent flatness
|
|
|
Low profile for convenient
PCB loading
|
PCB supports on 4 sides
|
Center support for
large PCB's
|
|
|
Goldfinger masking & connector clearance
|
Adjustable rails provide easy
PCB loading & unloading
|
Attachments can be supplied to hold or supposrt any size or shaped board
|
Adjustable Fixture Customized

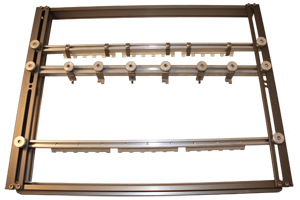

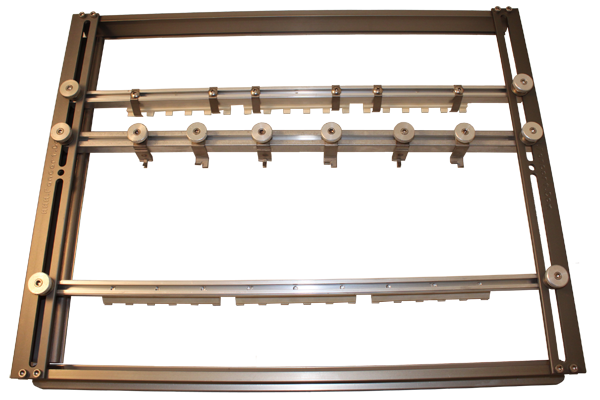

The Smart Adjustable can be customized to your precise needs. In this example, the outside frame rails have a groove for PCB support. The double groove rail has molded support fingers to reduce heat transfer. The DG rail has titanium fingers to support PCB’s with components close to the edge. The single clip rail has adjustable clips to add holding where needed on a variety of PCB’s. Finally the front edge solder dam eliminates the risk of PCB flooding and helps to reduce or eliminate PCB warping.
Adjustable Wave Solder Fixture

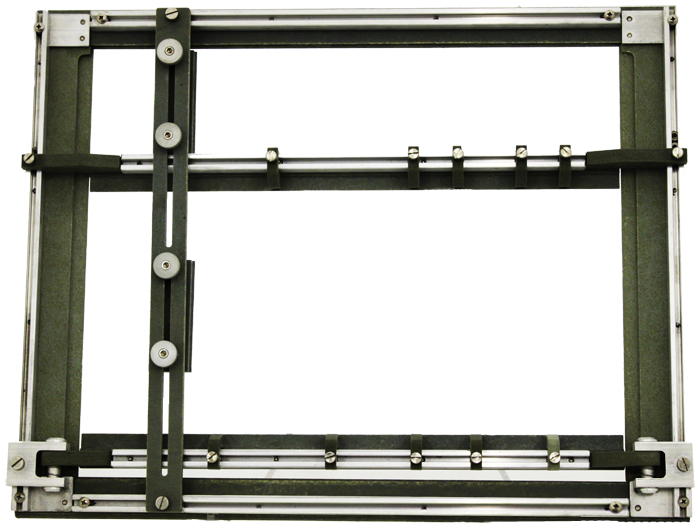

This fixture contains 1 spring loaded rail, 1 fixed rail and 1 overhead pickup bar.
Custom Adjustable Wave Solder Fixture
This unit was built for a return conveyor system on a wave solder machine.
