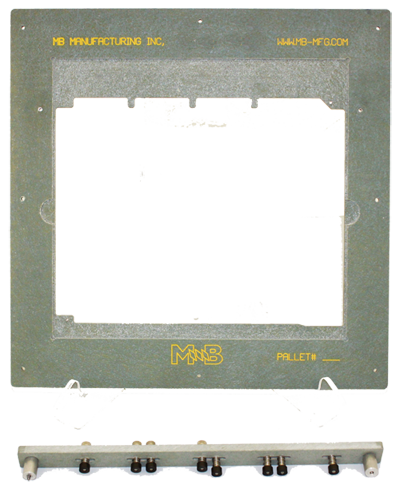

Surface Mount Fixture with an SMT Connector Hold Down

smt_full_process_carrier_wcrossbar_TN

2 fixed pins flush with the top of the PCB allowing for full SMT processing.

The removable crossbar features spring plungers that lock in the "up" position for loading.

This particular unit holds 4 SMT connectors in place during the reflow process.
