Wave Solder Pallets

Wave_Solder_Fixture_1_TN Wave_Solder_Fixture_5_TN Wave_Solder_Fixture_7_TN Wave_Solder_Fixture_2_TN Wave_Solder_Fixture_3_TN

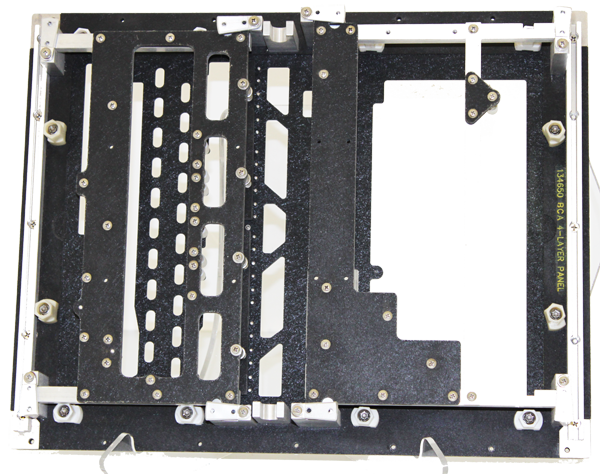

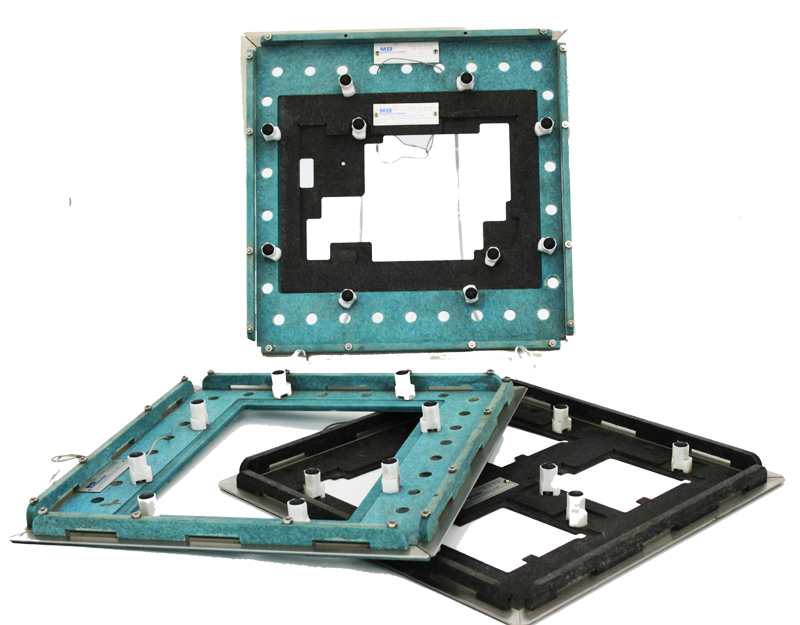

Our Wave Solder Fixtures increase productivity and eliminate defects in your pcb assembly process.

Read more: Wave Solder Pallets



Wave Solder Pallet with Snap on Top Hat

wave solder with snap on top hat



Wave Solder Pallet with Snap on Top Hat, spring loaded hold down and coil locator makes for perfect PCB’s every time. Simple and fast error proof orientation, with the Ultimate Cross Bar.

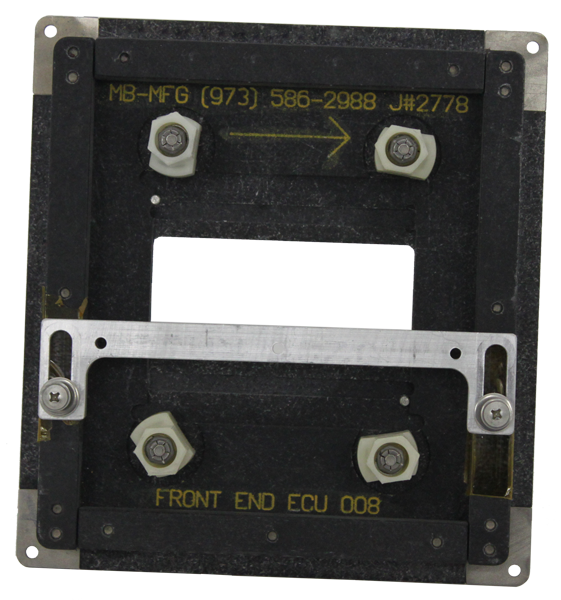

Wave Solder Pallet

Wave_Solder_Pallet_TN



Fast acting, cost effective slide to hold down a row of relays
Features titanium corners to eliminate edge wear in a high volume operations.







Full Process Carrier

Full_Process_Carrier_TN



Completely automate the PCB assembly of mixed technology boards.



Read more: Full Process Carrier



Full Process Carrier for Rigid Flex Assembly

smt_pallet_sm

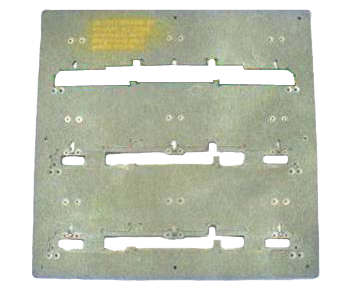

Features spring loaded pins flush with the top of the PCB forcing the assembly into position for automatic and accurate fine pitch placement.

Customers with conventional machines would be unable to obtain such accuracy without this unique tool.



Dedicated Wave Solder Fixture

Dedicated_Wave_Solder_Fixture_1_TN

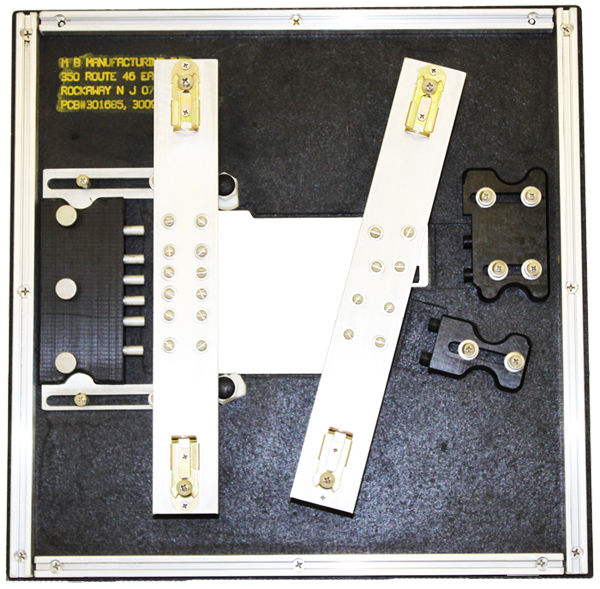

Designed to eliminate solder skipping, drag out, and add better connector support.


Read more: Dedicated Wave Solder Fixture



Dedicated Wave Solder Pallet

 Dedicated_Wave_Solder_Pallet_1_TN

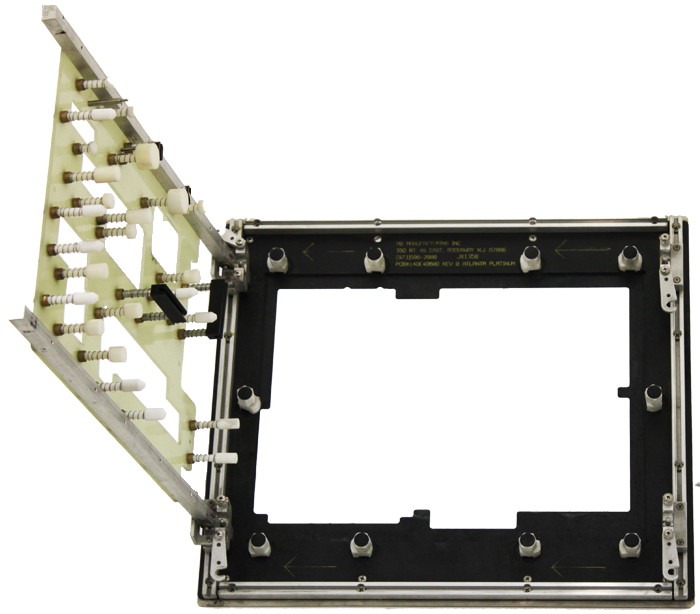

 Unique hinged crossbar has backstop to keep it at the proper angle when open.



Read more: Dedicated Wave Solder Pallet



Full Process Carrier for Silicone Chips

Full_Process_carrier_1_TN

Silicone chips are wire bonded to the PCB.

Read more: Full Process Carrier for Silicone Chips



Rotary Wave Solder Pallet

RotaryPalletsParts_1



Rotary wave solder pallet featuring stainless steel bars that were made using wire EDM.

Read more: Rotary Wave Solder Pallet



Mother Daughter Pallet

Mother_Daughter_Fixture_TN

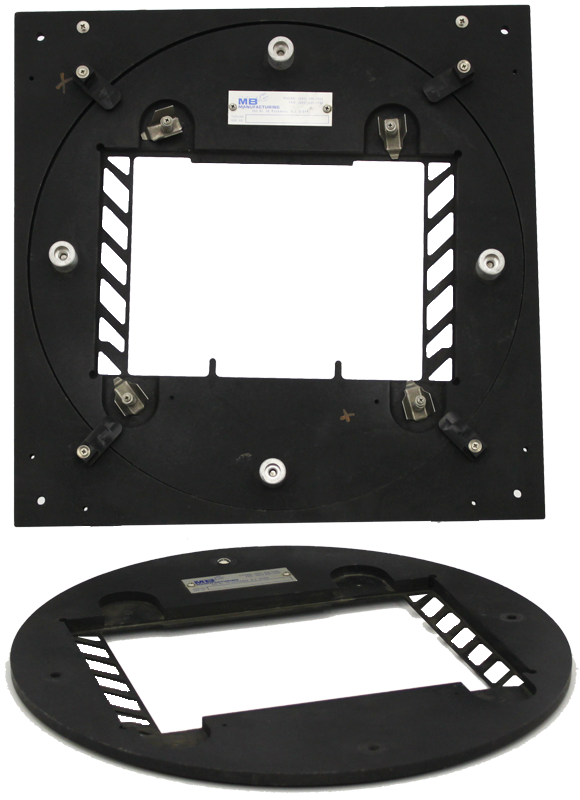

Dedicated mother daughter pallet with rotary fixtures.





Read more: Mother Daughter Pallet
